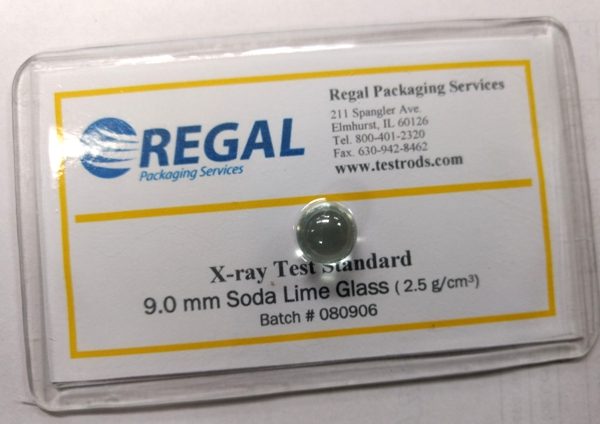

Thermoform Test Cards – Soda Lime Glass

$67.00

Hard “plastic” (PETG) cards holding any size contaminant and designed especially for rugged use.

Description

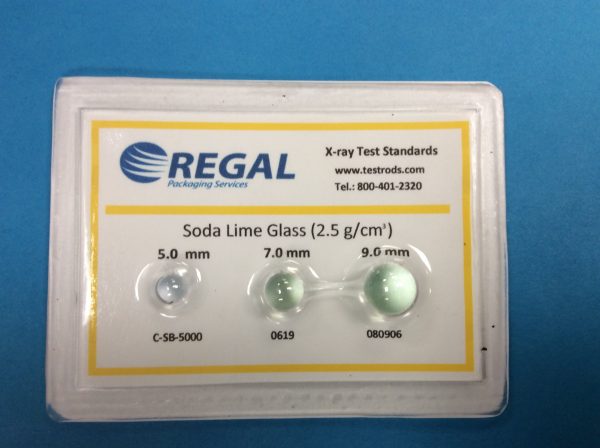

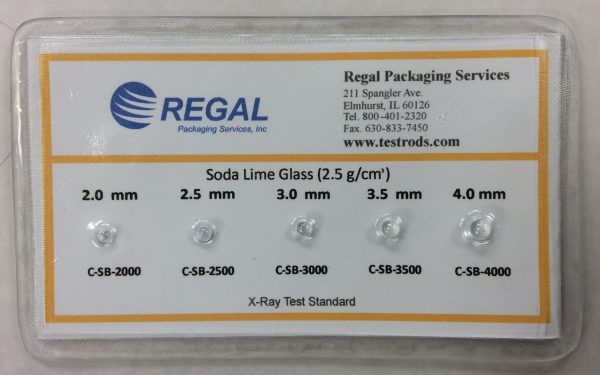

Thermoform Test Cards – Soda Lime Glass (2.5″x4.25″) are made with food grade polyethylene (PETG) and form a tight, solid structure surrounding the soda-lime glass or other contaminant type. The cards are particularly appropriate for wet or humid applications where there can be extra wear and tear on a laminate card. The plastic is hard and clear and, for all intensive purposes, as invisible under x-ray. Cards are available in a variety of sizes with a single or multiple balls (12+ special pricing) in all “contaminant” types, (Fe, NFe, SS 316, Ceramic, SLG and Aluminum) up to 10.0mm.  Thermoform Test Cards – Soda Lime Glass listed here. PLEASE CALL TO ORDER MULTI-CARDS. ONLY single seed cards are available on the website.  Sold Individually.  Email testrods@testrods.com or call 866-691-8560 TO ORDER MULTI-CARDS.

Validation testing of Metal Detectors and X-ray Inspection Systems is a critical component of a HACCP plan and quality management system. Validating the performance of your systems, before and during production runs gives you the assurance your systems are compliant to your plans and production standards.  Testrods is a division of Regal Packaging Services.  Hard Plastic Test Cards – Ceramic are made from Acetal Copolymer.

Soda-Lime Glass – 2.5 g/cm3
Compared to:
Buna Rubber – 1.2 g/cm
PETG – 1.38 g/cm
Acetal (Delrin) – 1.4 g/cm3
Viton Rubber – 1.85 g/cm
Teflon (PTFE) – 2.2 g/cm
Quartz – 2.2 g/cm3
Aluminum – 2.7 g/cm3
Density: Aluminum – 2.7 g/cm
Ceramic AL203 – 3.7 g/cm3
Ceramic ZR02 – 5.6 g/cm3
Ferrous (Chrome Steel) – 7.85 g/cm
Stainless Steel – 8.0 g/cm
Non-Ferrous (Brass) – 8.48 g/cm
Additional information
Weight 0.0625 lbs
Dimensions 2 × 2 × 0.5 in
Metal Size

1.0 mm, 1.5 mm, 2.0 mm, 2.5 mm, 3.0 mm, 3.5 mm, 4.0 mm, 4.5 mm, 5.0 mm, 6.0 mm, 7.0 mm, 8.0 mm, 9.0 mm, 10.0 mm
