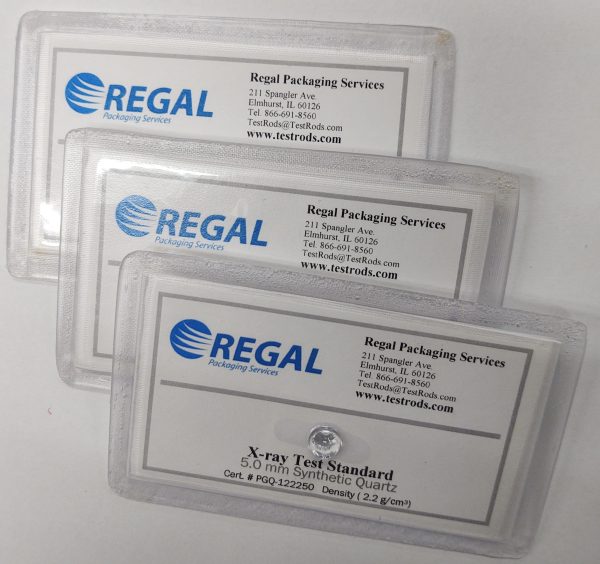

Thermoform Test Cards – Fused Quartz Glass


Thermoform Quartz Card made with Polyethylene terephthalate glycol, a clear plastic, 0.030″ (30mil) thickness.


2.5″ x 4.25″ Testcard with Fused Quartz Glass

High Performance 2 1/2″ x 4 1/4″ Thermoform (Clear plastic) Test Cards – Xray Machines. Color coded in Gray. Constructed from Heavy Duty Acetal (plastic) material available in this style card in 2.0 – 7.0mm, USDA & FDA approved. All products include complimentary certificates of conformity.  Sold individually.  Laminate Cards are also available with multiple sizes of metal and other contaminants – call for pricing on multi-cards. For larger sizes, see our Acetal Copolymer or Themoform Cards (also available in these sizes).

Validation testing of Xray Inspection Systems is a critical component of a HACCP plan and quality management system. This typically requires Laminate Test Cards – Xray.  Validating the performance of your systems, before and during production runs gives you the assurance your systems are compliant to your plans and production standards.

Fused Quartz – 2.2 g/cm
Compared to:
Buna Rubber – 1.2 g/cm
PETG – 1.38 g/cm
Acetal (Delrin) – 1.4 g/cm3
Viton Rubber – 1.85 g/cm
Teflon (PTFE) – 2.2 g/cm
Quartz – 2.2 g/cm3
Soda-Lime Glass – 2.5 g/cm3
Aluminum – 2.7 g/cm3
Density: Aluminum – 2.7 g/cm
Ceramic AL203 – 3.7 g/cm3
Ceramic ZR02 – 5.6 g/cm3
Ferrous (Chrome Steel) – 7.85 g/cm
Stainless Steel – 8.0 g/cm
Non-Ferrous (Brass) – 8.48 g/cm
Additional information
Weight 0.0625 lbs
Dimensions 2.5 × 4.25 × 0.5 in
Contaminant Size

2.0mm, 3.0mm, 4.0mm, 5.0mm, 6.0mm, 7.0mm, 8.0mm
